ERREPI unterbrechungsfreie Stromversorgung

GMSE10AT-8

Power 10 kVA/10 kW

In order to purchase products, you need a customer account with us.
Please register to receive more information about our products.

Account

Article-No.

First name

Surname (Mandatory Field)

Email Adress (Mandatory Field)

Your message (Mandatory Field)

Comfirm mandatory information pursuant to Article 13 GDPR

In the case of initial contact, we are obliged to provide you with the following mandatory data protection information in accordance with Art. 12, 13 GDPR: If you contact us by email or using this form, we will only process your personal data if we have a legitimate interest in the processing (Art. 6 para. 1 lit. f GDPR), if you have consented to the data processing (Art. 6 para. 1 lit. a GDPR), if the processing is necessary for the initiation, establishment, content or amendment of a legal relationship between you and us (Art. 6 para. 1 lit. b GDPR) or if another legal provision permits the processing. Your personal data will remain with us until you ask us to delete it, revoke your consent to storage or the purpose for data storage no longer applies (e.g. after your request has been processed). Mandatory statutory provisions - in particular retention periods under tax and commercial law - remain unaffected. You have the right to receive information about the origin, recipient and purpose of your stored personal data free of charge at any time. You also have the right to object, the right to data portability and the right to lodge a complaint with the competent supervisory authority. Furthermore, you can request the rectification, erasure and, under certain circumstances, the restriction of the processing of your personal data. Details can be found in our privacy policy.

I have taken note of the above mandatory information in accordance with Article 13 GDPR (Mandatory Field)

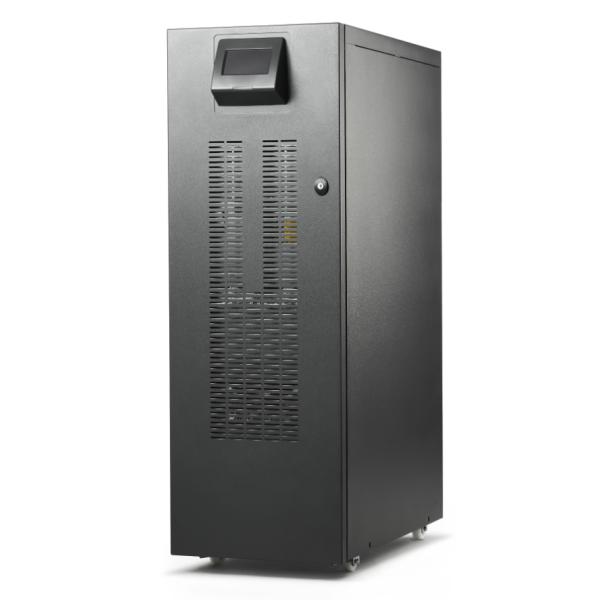

Uninterruptible power supply in On-Line technology (VFI), GMSE-AT series with a power of 10 kVA/10 kW, 3-phase input/output, autonomy time 8 minutes (40x9Ah). Data cable included. Automatic bypass, RS232 interface, potential-free contacts. Dimensions (HxWxD): 1025 x 380 x 850 mm, weight: 180 kg.

The installation and maintenance of the UPS must only be carried out by qualified personnel!
The UPS systems must not be operated without an earth connection, as system-related leakage currents can occur. The first step is to connect the earth conductor to the terminal marked PE (yellow/green).
The UPS generates a leakage current of more than 3.5 mA (see leakage current value in the operating manual). Caution: The leakage currents of the connected loads add up to the leakage current of the UPS at the earth connection.
The UPS requires a neutral conductor for proper operation. A missing neutral conductor could lead to damage to the UPS.
Dangerous electrical voltages can occur inside the UPS even with open input switches and/or open battery switches. The inside of the UPS is protected by partition walls that may only be removed by qualified personnel. Tools are required for all installation and maintenance work or work that requires access to the inside of the UPS; this work may only be carried out by qualified personnel.
The UPS contains an internal battery system as a source of energy. All terminals and plugs can be live even when the UPS is not connected to the mains.
The battery voltage can be dangerous: improper handling can result in an electric shock. The battery compartment is protected by partition walls that may only be removed by qualified personnel. Tools are required for all installation and maintenance work on the batteries that requires access to the inside of the UPS; this work may only be carried out by qualified personnel. If batteries are replaced, they must be disposed of or recycled in accordance with local laws. Do not throw batteries into a fire, they can explode. Do not attempt to open the batteries, they do not require internal maintenance. The electrolyte is dangerous for skin and eyes and can be poisonous.
Do not switch on the UPS if a liquid leak is noticeable or white powdery residue is visible.
Under no circumstances may liquids and/or foreign objects get into the UPS.
In case of danger, the UPS must be switched off with the main switch and all existing disconnectors must be opened. A connected emergency stop switch can deactivate the inverter.
Do not open the battery fuses if the UPS load is supplied by the battery via the inverter. Opening the battery fuse can cause an arc and lead to the destruction of the device and/or fire.
If there is no mains supply, the energy for the load is supplied by the battery and opening the battery fuses would lead to the load being switched off.
If necessary, fuses should only be replaced with new fuses of the same type.
To connect an external battery system, the supplied connection cable or an approved connection cable must be used.
The warning sticker included with the UPS must be attached to all disconnecting devices installed upstream of the UPS.

GMSE10AT-8

Productinformation
