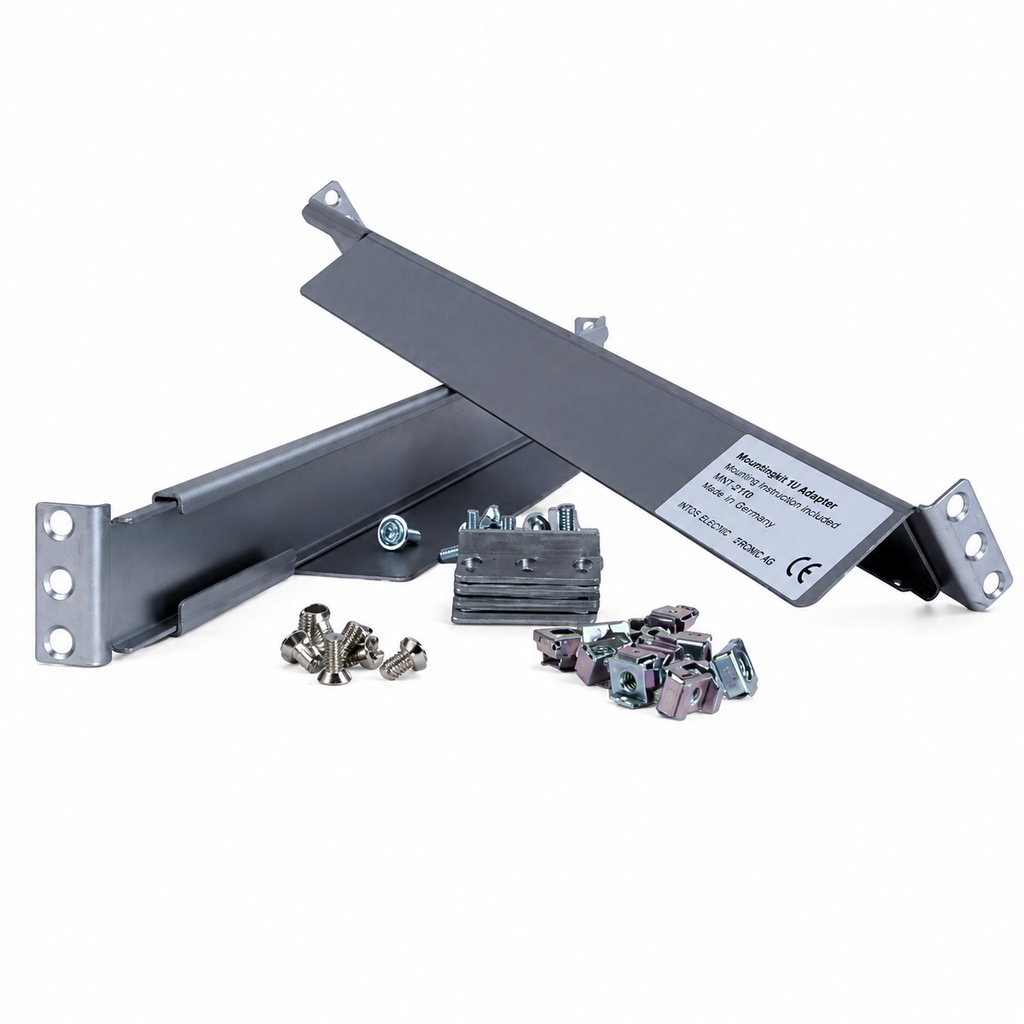

Flexible 19-inch sliding rail set made of robust sheet steel for UPS systems up to 3U. The installation depth can be precisely adjusted from 500 to 900 mm and easily carries loads up to 50 kg.
Product description
This high-quality 19-inch sliding rail set in silver gray offers a stable mounting solution for heavy network components. Made of solid sheet steel, the system reliably supports UPS systems and other rack components up to a height of 3U and a maximum weight of 50 kg. Thanks to its continuously adjustable design, the set is ideal for cabinet depths from 500 to 900 mm and offers tremendous flexibility during installation. A generous contact surface of 65 mm ensures secure support for the installed devices in the rack at all times. With compact dimensions of 507 x 61 x 42 mm and a low net weight of 2 kg, the mounting system can be integrated quickly and conveniently into existing server cabinets.
Notes
Safety information
When installing and using the slide rail set, be sure to follow the instructions for avoiding personal injury and property damage. The rail system is approved for a maximum weight of 50 kg, and overloading can lead to material failure. Always mount heavy UPS systems in the lowest part of the server cabinet, as a higher position shifts the center of gravity unfavorably and greatly increases the risk of tipping. Lifting and sliding in the heavy hardware must be carried out by at least two people to prevent injury. When positioning the devices, pay close attention to your hands and never reach between the components to avoid crushing injuries. Before the components are finally set in place, always check that all screws and fasteners are tightened securely so that hardware falling is safely ruled out.
Disposal information
The product is made of solid sheet steel and must not be disposed of with regular household waste after the end of its service life. Please send the metal rails to proper recycling and hand them in as scrap metal at a local recycling center or a suitable recycling facility. This ensures environmentally sound reuse of the valuable raw materials. Please dispose of any packaging material separately by material type in the designated municipal collection containers for waste paper and light packaging.
Technical data
Product data
Product number
RRR-19Z01-PC001
Unit
pc
Accessories and service
Matching accessories
Frequently asked questions
What are angle rails used for?
Angle rails are used for the secure mounting and stabilization of devices in network cabinets, server cabinets, and industrial enclosures. They provide additional support and make it possible to mount components that cannot be attached directly to the existing mounting profiles.
Which devices are angle rails suitable for?
Angle rails are suitable for mounting UPS systems, battery modules, servers, network devices, and other heavy or deep components. They help distribute the load evenly within the cabinet.
Do angle rails increase the load capacity in the server cabinet?
Angle rails provide additional support for installed devices and can reduce the load on the mounting profiles. This is especially beneficial for heavy components and contributes to greater stability of the entire installation.
